Fuzzing the Linux Kernel

• How do we generate inputs?
  • (Dumb) generate random blobs

  • (Smart) structured blobs

  • Internal - Kernel only accepts single syscalls and not blobs as inputs

    • Simple syscalls: When you fuzz the kernel, a “single” input generated by the fuzzer can mean multiple syscalls, i.e., call API and then follow through. Example in Figure 1.

    • Other syscalls: not all syscalls accept simple structures as arguments

  • External
    • Network: seem like blobs, more like API due to protocol syntax (e.g., TCP SYN/ACK numbers)
    • USB: host-driven communication, the fuzzer is responding to API calls

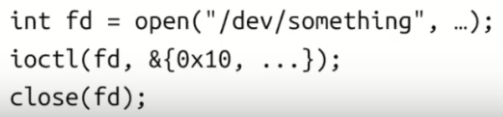

Figure 1. Simple Syscalls

• How do we detect crashes (or other kind of bugs)?
  • Detecting bugs
    • Use dynamic bug detectors: KASAN, KMSAN, and KCSAN.
    • Write your detectors: checks for logical bugs and assertions.
• How do we automate the process?
  • Be able to leave the fuzzer running for the night
  • Automation:
    • Monitoring kernel log for crashes, restarting crashed VMs, deduplicating crashes, generating reproducers, reporting bugs/tracking fixes
      • Basically, all the fun stuff that syzkaller/syzbot do

Linux Kernel Fuzzers

• Trinity: find less bugs, easier to deploy, simpler fuzzer
• Syzkaller: goes deeper, finds more bugs, easier to extend

Syzkaller

• test cases (including isolation)
• coverage-guidance (using KCOV)
• language to describe API/structures (syzlang)
• automation (scalability, reproducers, dashboards, syzbot)

Fuzzing Approaches - pragmatic:

• Building code as a userspace app and fuzzing that
• Reusing a userspace fuzzer (AFL, libFuzzer, …)
• Using syzkaller
• Writing a fuzzer from scratch

Using Syzkaller:

• See Syzkaller talks for usage
• Good at fuzzing API-based interfaces out-of-the-box

• syzkaller is extensible

• Tip #1: Don’t just fuzz mainline with the default config
  • This is already done by syzbot
  • Add new descriptions
  • Tighten attack surface: fuzz a small number of related syscalls
  • Fuzz distro kernels
• Tip #2: Build your fuzzer on top of Syzkaller
  • Specific fuzzer for USB and KVM build on top Syzkaller
• Tip #3: Use syzkaller as a framework
  • Only use crash parsing code
  • Only use VM management code

Fuzzing Tips

• Read the code
  • Understand the code you’re fuzzing
    • What kind of inputs it expects
    • Which part you are trying to target
  • Write a fuzzer based on that
    • Writing fuzzer based on specs/docs does not work well, you need to understand the code that you’re targeting
• Is my fuzzer good?
  • Check code coverage, make sure you cover the targeted layer
  • Inject bugs (WARN_ON()/BUG_ON()) and check that the fuzzer finds them
  • Revert fixes for bugs/CVEs and check that fuzzer finds them
• Fast vs Smart
  • Fast fuzzer: more execs/sec
  • Smart fuzzer: better input generation, relevant guidance signal
  • Focus smart in the first place
